Industry
- YL SERIES FOR LIGHT TORQUE
-

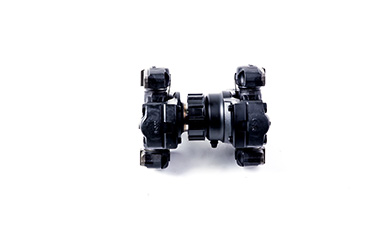

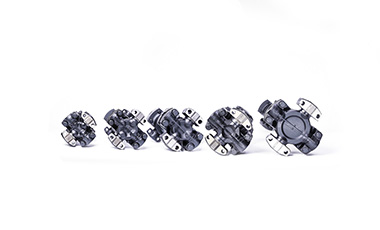

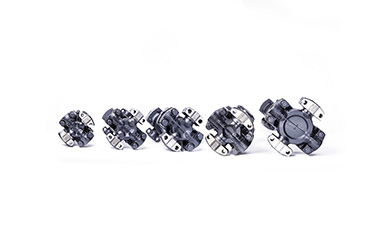

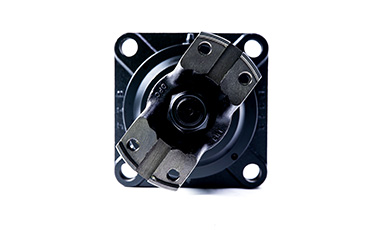

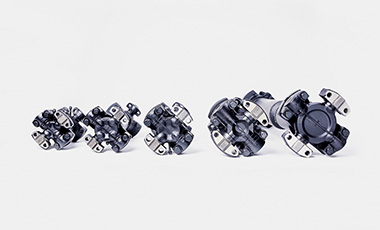

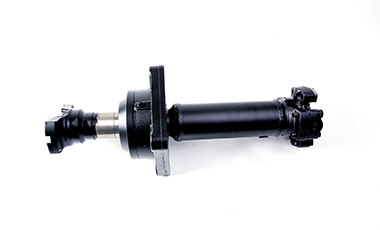

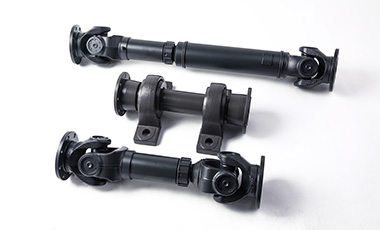

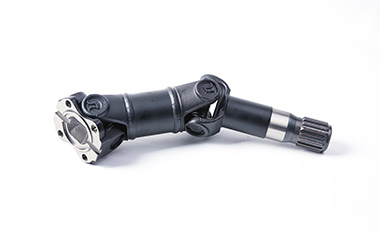

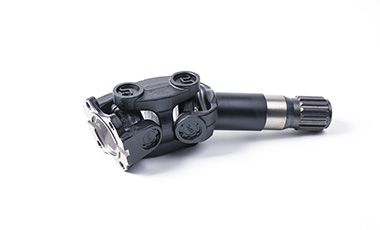

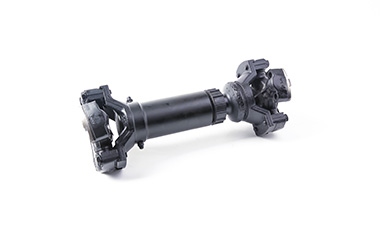

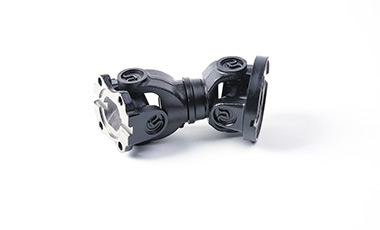

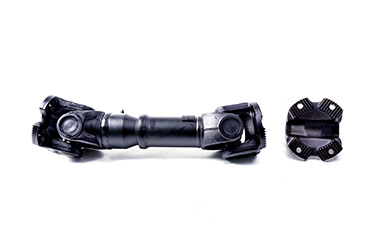

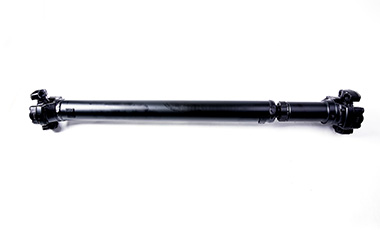

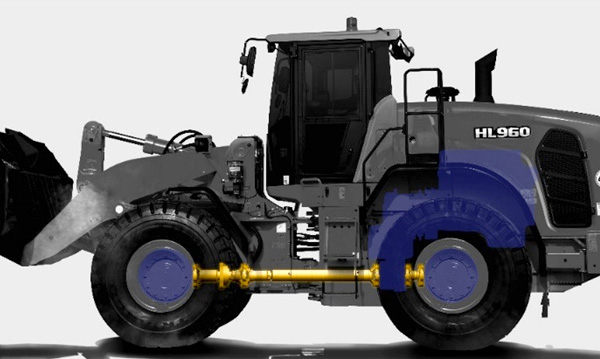

- Propeller shaft for light load
- Industrial machinery, paper mii, rolling mill
(UNIT:mm)
| SIZE | YL75 | YL100 | YL120 | YL150 | YL160 | YL180 | YL200 |
|---|---|---|---|---|---|---|---|
| SIZE Tn Kg.m (NORMAL OPERATING TORQUE) | 36 | 103 | 196 | 406 | 574 | 700 | 1,155 |
| Tm Kg.m (MAX TRANSMITTING TORQUE) | 55 | 154 | 294 | 609 | 861 | 1,050 | 1,733 |
| Lz (SHORTEST COMPRESSED LENGTH) | 340 | 380 | 520 | 650 | 590 | 720 | 640 |
| ØD (SWING DIAMETER) | 68 | 100 | 120 | 150 | 160 | 180 | 200 |
| ØE (SPLINE DIAMETER) | 33 | 34.65 | 50.8 | 54 | 50.8 | 60 | 63 |
| M | 50 | 60 | 83 | 90 | 90 | 115 | 115 |
| β° (MAX OPERATING ANGLE) | 25° | 25° | 25°80 | 25° | 25° | 25° | 25° |
| La (SPLINE STROKE) | 60 | 60 | 80 | 80 | 80 | 100 | 100 |
| ØF (PIPE DIAMETER) | 50.8 | 76.2 | 73 | 88.9 | 88.9 | 101.6 | 114.3 |
| ØC | 90 | 120 | 120 | 150 | 160 | 180 | 200 |
| P.C.D | 74.5 | 101.5 | 101.5 | 130 | 138 | 158 | 178 |
| ØА | 47 | 75 | 75 | 90 | 90 | 90 | 100 |
| 1-ØH | 4-8.5 | 6-8.5 | 8-12.5 | 8-12.5 | 8-12.5 | 8-14.5 | 8-14.5 |
| T | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| G | 8 | 8 | 10 | 12 | 12 | 14 | 18 |
